pcDNA3 HA Arf6 ActQ67L

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pcDNA3 HA Arf6 ActQ67L
出品公司: 爱迪基因
目录编号: 10835
存储实验室: Thomas Roberts

载体骨架基本信息
载体名称: pcDNA3.1
载体出品公司: Invitrogen
载体抗性: 氨苄青霉素
空载体大小: 5428 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: 新霉素G418
高拷贝/低拷贝: 高拷贝
生长条件: 37 ℃

插入基因信息
插入基因名称: Arf6 Q67L,Arf6
物种来源: H. sapiens (human)
插入大小: 525 bp
基因突变: Q67L. Defective in GTP hydrolysis. Constitutively active.
GenBank编号 --
启动子 --
标签/融合蛋白: HA(插入件上的C端子)
克隆方法: 限制性内切酶
5' 克隆位点: EcoRI(未破坏)
3' 克隆位点: XhoI (未破坏)
5' 测序引物 T7
3' 测序引物 bGH PA terminator

文献引用方法
材料和方法部分: pcDNA3 HA Arf6 ActQ67L was a gift from Thomas Roberts (Addgene plasmid # 10835 ; http://n2t.net/addgene:10835 ; RRID:Addgene_10835)
参考文献部分: DEF-1/ASAP1 is a GTPase-activating protein (GAP) for ARF1 that enhances cell motility through a GAP-dependent mechanism. Furman C, Short SM, Subramanian RR, Zetter BR, Roberts TM. J Biol Chem. 2002 Mar 8. 277(10):7962-9. 10.1074/jbc.M109149200 PubMed 11773070

载体图谱质粒图谱和多克隆位点信息

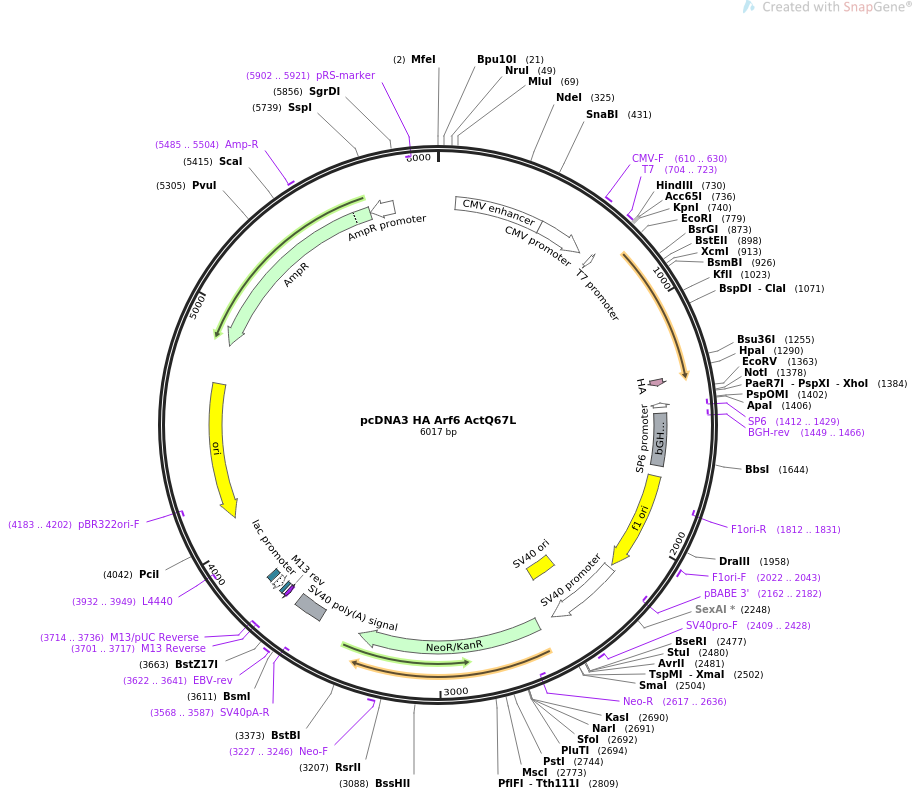

pcDNA3 HA Arf6 ActQ67L质粒图谱

载体简介

载体序列

LOCUS       pcDNA3 HA Arf6 ActQ67L               6017 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pcDNA3 HA Arf6 ActQ67L
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6017)
  AUTHORS   Furman C, Short SM, Subramanian RR, Zetter BR, Roberts TM
  TITLE     DEF-1/ASAP1 is a GTPase-activating protein (GAP) for ARF1 that
            enhances cell motility through a GAP-dependent mechanism.
  JOURNAL   J Biol Chem. 2002 Mar 8. 277(10):7962-9.
  PUBMED    11773070
REFERENCE   2  (bases 1 to 6017)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6017
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        76..455
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        456..659
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     610..630
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     primer_bind     704..723
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        704..722
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     CDS             1310..1336
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     promoter        complement(1411..1429)
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     complement(1412..1429)
                     /label=SP6
                     /note="SP6 promoter, forward primer"
     primer_bind     complement(1449..1466)
                     /label=BGH-rev
                     /note="Bovine growth hormone terminator, reverse primer.
                     Also called BGH reverse"
     polyA_signal    1455..1679
                     /label=bGH poly(A) signal
                     /note="bovine growth hormone polyadenylation signal"
     rep_origin      1725..2153
                     /direction=RIGHT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(1812..1831)
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     2022..2043
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     complement(2162..2182)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        2167..2496
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      2347..2482
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     2409..2428
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             2563..3357
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(2617..2636)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3227..3246
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     polyA_signal    3531..3652
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(3568..3587)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     3622..3641
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     complement(3701..3717)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3701..3717)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3714..3736)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3725..3741
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3749..3779)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    3794..3815
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(3932..3949)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4103..4691)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4183..4202)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(4862..5722)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5485..5504
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5723..5827)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     complement(5902..5921)
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
ORIGIN
        1 acaattgcat gaagaatctg cttagggtta ggcgttttgc gctgcttcgc gatgtacggg
       61 ccagatatac gcgttgacat tgattattga ctagttatta atagtaatca attacggggt
      121 cattagttca tagcccatat atggagttcc gcgttacata acttacggta aatggcccgc
      181 ctggctgacc gcccaacgac ccccgcccat tgacgtcaat aatgacgtat gttcccatag
      241 taacgccaat agggactttc cattgacgtc aatgggtgga gtatttacgg taaactgccc
      301 acttggcagt acatcaagtg tatcatatgc caagtacgcc ccctattgac gtcaatgacg
      361 gtaaatggcc cgcctggcat tatgcccagt acatgacctt atgggacttt cctacttggc
      421 agtacatcta cgtattagtc atcgctatta ccatggtgat gcggttttgg cagtacatca
      481 atgggcgtgg atagcggttt gactcacggg gatttccaag tctccacccc attgacgtca
      541 atgggagttt gttttggcac caaaatcaac gggactttcc aaaatgtcgt aacaactccg
      601 ccccattgac gcaaatgggc ggtaggcgtg tacggtggga ggtctatata agcagagctc
      661 tctggctaac tagagaaccc actgcttact ggcttatcga aattaatacg actcactata
      721 gggagaccca agcttggtac cgagctcgga tccactagta acggccgcca gtgtgctgga
      781 attcatgggg aaggtgctat ccaaaatctt cgggaacaag gaaatgcgga tcctcatgtt
      841 gggcctggac gcggccggca agacaacaat cctgtacaag ttgaagctgg gccagtcggt
      901 gaccaccatt cccactgtgg gtttcaacgt ggagacggtg acttacaaaa atgtcaagtt
      961 caacgtatgg gatgtgggcg gtctagacaa gatccggccg ctctggcggc attactacac
     1021 tgggacccaa ggtctcatct tcgtagtgga ctgcgccgac cgcgaccgca tcgatgaggc
     1081 tcgccaggag ctgcaccgca ttatcaatga ccgggagatg agggacgcca taatcctcat
     1141 cttcgccaac aagcaggacc tgcccgatgc catgaaaccc cacgagatcc aggagaaact
     1201 gggcctgacc cggattcggg acaggaactg gtatgtgcag ccctcctgtg ccacctcagg
     1261 ggacggactc tatgaggggc tcacatggtt aacctctaac tacaaatctt acccatacga
     1321 tgttccagat tacgcttaat agtctagaca gctgagatct gatatccatc acactggcgg
     1381 ccgctcgagc atgcatctag agggccctat tctatagtgt cacctaaatg ctagagctcg
     1441 ctgatcagcc tcgactgtgc cttctagttg ccagccatct gttgtttgcc cctcccccgt
     1501 gccttccttg accctggaag gtgccactcc cactgtcctt tcctaataaa atgaggaaat
     1561 tgcatcgcat tgtctgagta ggtgtcattc tattctgggg ggtggggtgg ggcaggacag
     1621 caagggggag gattgggaag acaatagcag gcatgctggg gatgcggtgg gctctatggc
     1681 ttctgaggcg gaaagaacca gctggggctc tagggggtat ccccacgcgc cctgtagcgg
     1741 cgcattaagc gcggcgggtg tggtggttac gcgcagcgtg accgctacac ttgccagcgc
     1801 cctagcgccc gctcctttcg ctttcttccc ttcctttctc gccacgttcg ccggctttcc
     1861 ccgtcaagct ctaaatcggg ggctcccttt agggttccga tttagtgctt tacggcacct
     1921 cgaccccaaa aaacttgatt agggtgatgg ttcacgtagt gggccatcgc cctgatagac
     1981 ggtttttcgc cctttgacgt tggagtccac gttctttaat agtggactct tgttccaaac
     2041 tggaacaaca ctcaacccta tctcggtcta ttcttttgat ttataaggga ttttgccgat
     2101 ttcggcctat tggttaaaaa atgagctgat ttaacaaaaa tttaacgcga attaattctg
     2161 tggaatgtgt gtcagttagg gtgtggaaag tccccaggct ccccagcagg cagaagtatg
     2221 caaagcatgc atctcaatta gtcagcaacc aggtgtggaa agtccccagg ctccccagca
     2281 ggcagaagta tgcaaagcat gcatctcaat tagtcagcaa ccatagtccc gcccctaact
     2341 ccgcccatcc cgcccctaac tccgcccagt tccgcccatt ctccgcccca tggctgacta
     2401 atttttttta tttatgcaga ggccgaggcc gcctctgcct ctgagctatt ccagaagtag
     2461 tgaggaggct tttttggagg cctaggcttt tgcaaaaagc tcccgggagc ttgtatatcc
     2521 attttcggat ctgatcaaga gacaggatga ggatcgtttc gcatgattga acaagatgga
     2581 ttgcacgcag gttctccggc cgcttgggtg gagaggctat tcggctatga ctgggcacaa
     2641 cagacaatcg gctgctctga tgccgccgtg ttccggctgt cagcgcaggg gcgcccggtt
     2701 ctttttgtca agaccgacct gtccggtgcc ctgaatgaac tgcaggacga ggcagcgcgg
     2761 ctatcgtggc tggccacgac gggcgttcct tgcgcagctg tgctcgacgt tgtcactgaa
     2821 gcgggaaggg actggctgct attgggcgaa gtgccggggc aggatctcct gtcatctcac
     2881 cttgctcctg ccgagaaagt atccatcatg gctgatgcaa tgcggcggct gcatacgctt
     2941 gatccggcta cctgcccatt cgaccaccaa gcgaaacatc gcatcgagcg agcacgtact
     3001 cggatggaag ccggtcttgt cgatcaggat gatctggacg aagagcatca ggggctcgcg
     3061 ccagccgaac tgttcgccag gctcaaggcg cgcatgcccg acggcgagga tctcgtcgtg
     3121 acccatggcg atgcctgctt gccgaatatc atggtggaaa atggccgctt ttctggattc
     3181 atcgactgtg gccggctggg tgtggcggac cgctatcagg acatagcgtt ggctacccgt
     3241 gatattgctg aagagcttgg cggcgaatgg gctgaccgct tcctcgtgct ttacggtatc
     3301 gccgctcccg attcgcagcg catcgccttc tatcgccttc ttgacgagtt cttctgagcg
     3361 ggactctggg gttcgaaatg accgaccaag cgacgcccaa cctgccatca cgagatttcg
     3421 attccaccgc cgccttctat gaaaggttgg gcttcggaat cgttttccgg gacgccggct
     3481 ggatgatcct ccagcgcggg gatctcatgc tggagttctt cgcccacccc aacttgttta
     3541 ttgcagctta taatggttac aaataaagca atagcatcac aaatttcaca aataaagcat
     3601 ttttttcact gcattctagt tgtggtttgt ccaaactcat caatgtatct tatcatgtct
     3661 gtataccgtc gacctctagc tagagcttgg cgtaatcatg gtcatagctg tttcctgtgt
     3721 gaaattgtta tccgctcaca attccacaca acatacgagc cggaagcata aagtgtaaag
     3781 cctggggtgc ctaatgagtg agctaactca cattaattgc gttgcgctca ctgcccgctt
     3841 tccagtcggg aaacctgtcg tgccagctgc attaatgaat cggccaacgc gcggggagag
     3901 gcggtttgcg tattgggcgc tcttccgctt cctcgctcac tgactcgctg cgctcggtcg
     3961 ttcggctgcg gcgagcggta tcagctcact caaaggcggt aatacggtta tccacagaat
     4021 caggggataa cgcaggaaag aacatgtgag caaaaggcca gcaaaaggcc aggaaccgta
     4081 aaaaggccgc gttgctggcg tttttccata ggctccgccc ccctgacgag catcacaaaa
     4141 atcgacgctc aagtcagagg tggcgaaacc cgacaggact ataaagatac caggcgtttc
     4201 cccctggaag ctccctcgtg cgctctcctg ttccgaccct gccgcttacc ggatacctgt
     4261 ccgcctttct cccttcggga agcgtggcgc tttctcatag ctcacgctgt aggtatctca
     4321 gttcggtgta ggtcgttcgc tccaagctgg gctgtgtgca cgaacccccc gttcagcccg
     4381 accgctgcgc cttatccggt aactatcgtc ttgagtccaa cccggtaaga cacgacttat
     4441 cgccactggc agcagccact ggtaacagga ttagcagagc gaggtatgta ggcggtgcta
     4501 cagagttctt gaagtggtgg cctaactacg gctacactag aagaacagta tttggtatct
     4561 gcgctctgct gaagccagtt accttcggaa aaagagttgg tagctcttga tccggcaaac
     4621 aaaccaccgc tggtagcggt ggtttttttg tttgcaagca gcagattacg cgcagaaaaa
     4681 aaggatctca agaagatcct ttgatctttt ctacggggtc tgacgctcag tggaacgaaa
     4741 actcacgtta agggattttg gtcatgagat tatcaaaaag gatcttcacc tagatccttt
     4801 taaattaaaa atgaagtttt aaatcaatct aaagtatata tgagtaaact tggtctgaca
     4861 gttaccaatg cttaatcagt gaggcaccta tctcagcgat ctgtctattt cgttcatcca
     4921 tagttgcctg actccccgtc gtgtagataa ctacgatacg ggagggctta ccatctggcc
     4981 ccagtgctgc aatgataccg cgagacccac gctcaccggc tccagattta tcagcaataa
     5041 accagccagc cggaagggcc gagcgcagaa gtggtcctgc aactttatcc gcctccatcc
     5101 agtctattaa ttgttgccgg gaagctagag taagtagttc gccagttaat agtttgcgca
     5161 acgttgttgc cattgctaca ggcatcgtgg tgtcacgctc gtcgtttggt atggcttcat
     5221 tcagctccgg ttcccaacga tcaaggcgag ttacatgatc ccccatgttg tgcaaaaaag
     5281 cggttagctc cttcggtcct ccgatcgttg tcagaagtaa gttggccgca gtgttatcac
     5341 tcatggttat ggcagcactg cataattctc ttactgtcat gccatccgta agatgctttt
     5401 ctgtgactgg tgagtactca accaagtcat tctgagaata gtgtatgcgg cgaccgagtt
     5461 gctcttgccc ggcgtcaata cgggataata ccgcgccaca tagcagaact ttaaaagtgc
     5521 tcatcattgg aaaacgttct tcggggcgaa aactctcaag gatcttaccg ctgttgagat
     5581 ccagttcgat gtaacccact cgtgcaccca actgatcttc agcatctttt actttcacca
     5641 gcgtttctgg gtgagcaaaa acaggaaggc aaaatgccgc aaaaaaggga ataagggcga
     5701 cacggaaatg ttgaatactc atactcttcc tttttcaata ttattgaagc atttatcagg
     5761 gttattgtct catgagcgga tacatatttg aatgtattta gaaaaataaa caaatagggg
     5821 ttccgcgcac atttccccga aaagtgccac ctgacgtcga cggatcggga gatctcccga
     5881 tcccctatgg tgcactctca gtacaatctg ctctgatgcc gcatagttaa gccagtatct
     5941 gctccctgct tgtgtgttgg aggtcgctga gtagtgcgcg agcaaaattt aagctacaac
     6001 aaggcaaggc ttgaccg
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
